Sanitary Solenoid Valves

Price: 1.0~50.0 USD
Payment Terms: T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 2W
Production Capacity: 5000-10000PCS/MONTH
Delivery Date: 1~20 Working Days
Standard or Nonstandard: Standard
Structure: Control
Temperature of Media: Medium Temperature
Brand Name: TXPC
2WT: Normally Open
Working Pressure: 0-16MPa
Function: 2/2 Way
Brand Type: TXPC
Means of Transport: Air
Packing: Standard Export Package Or ...
Power: Pneumatic
Pressure: Medium Pressure
Material: Brass or Stainless Steel
Media: Water
2W: Normally Closed
Type: Direct Act and Diaphragm
Working Temperature: -20-185'C
Body: Compact Valve Body
Port Size: 1/8''-2''

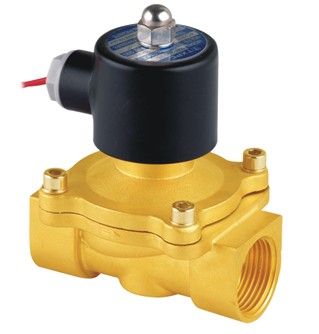

2W Water Solenoid Valves
High Quality Brass
Direct Acting Valves
Normally Open Water Valve
IP65
IP68 Waterproof Valves

Description:
· Two position, two way, normal close switch, magnetic solenoid water valve.
· Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
· Used to control automatically the liquid and gas in the pipeline.

Specs and Descriptions
2W025-06
2W025-08
2W040-10
Port Size
G(NPT)1/8''
G(NPT)1/4''
G(NPT)3/8''
Flow Bore Size
2.5mm
2.5mm
4.0mm
CV Value
0.23
0.23
0.6
Type
Normal Closed
Way Position
2/2 Way
Material of Body
2W:Brass(Option:2S:Stainless Steel)
Motion Pattern
Direct Drive
Working Temperature
-5~+80'C(180'C)
Working Pressure
Water/Oil:0~0.5Mpa  Air/Gas:0~0.7Mpa
Material of Seal
NBR,VITON,EPDM
Voltage
AC110V,AC220V,DC12V,DC24V
Voltage Range
±10%
Liquid
Water Oil Gas Air
Coil
Conventional(Waterproof)

Specs and Descriptions
2W160-10
2W160-15
2W200-20
2W250-25
Port Size
G3/8''
G1/2''
G3/4''
G1''
CV Value
4.8
4.8
7.6
12
Type
Normal Closed
Way Position
2/2 Way
Material of Body
2W:Brass(Option:2S:Stainless Steel)
Motion Pattern
Direct Drive
Working Temperature
-5~+80'C(180'C)
Working Pressure
Water/Oil:0~0.5Mpa  Air/Gas:0~0.7Mpa
Material of Seal
NBR,VITON,EPDM
Voltage
AC110V,AC220V,DC12V,DC24V
Voltage Range
±10%
Liquid
Water Oil Gas Air
Coil
Wire Lead,DIN
