Enlarge 2 Way Solenoid Valve Brass

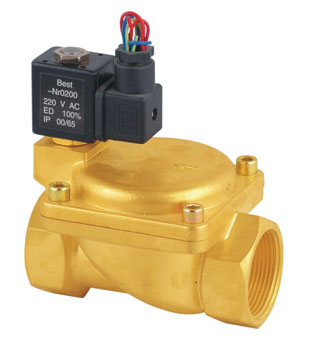

2 Way Solenoid Valve Brass

Price: 1.0~50.0 USD
Payment Terms: T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 0927
Production Capacity: 5000-10000PCS/MONTH
Delivery Date: 1~20 Working Days
Standard or Nonstandard: Standard
Structure: Control
Temperature of Media: Medium Temperature
Brand Name: TXPC
0955: Normally Open
Working Pressure: 0-16MPa
Function: 2/2 Way
Brand Type: TXPC
Means of Transport: Air
Packing: Standard Export Package Or ...
Power: Pneumatic
Pressure: Medium Pressure
Material: Brass
Media: Others
0927: Normally Closed
Type: diaphragm
Working Temperature: -20-185'C
Body: Compact Valve Body
Port Size: 1/8''-2''

0927 series Normally Closed Valves
0955 series Normally Open Valves
2/2 Way
Brass Valves

Feature
1.Solenoid pilot valve control,simple and compact structure.
2.Flow direction should be marked with the same valve.
3.Mounting any position.
4.Pilot solenoid valve could be interchanged.
5.Option voltage: AC110V,AC220V,DC12V,DC24V
6.Power consumption:DC:12W,AC: start:22VA,work:5VA
Description
1.0927/0955 series 2/2 way solenoid valve is the control components in the modern industrial.
2.0927 series solenoid valves are normally closed.
3.0955 series solenoid valves are normally open.
4.Replace the solenoid can make the valves explosion-proof EXm.

0927 Series Normally Closed Valve
MODEL
0927000
0927200
0927300
0927400
0927500
0927600
0927700
PORT SIZE
G1/4''
G1/2''
G3/4''
G1''
G 1 1/4''
G1 1/2''
G2''
BORE(mm)
8
12
20
25
32
40
50
KV VALUE
1.15
1.70
5.1
5.35
20.0
25.0
43.0
WEIGHT(kg)
0.70
0.70
1.20
1.30
2.70
2.70
3.50
PRESSURE
0.07~1.6MPa
0.1~1.6MPa
MEDIUM
AIR,WATER,OIL,STEAM
TYPE
NORMAL CLOSED
BODY MATERIAL
BRASS
SEAL MATERIAL
NBR/VITON(SILICAL)
TEMPERATURE
NBR:-5~80C   VITON:-20~150C
COIL
HERION TYPE 0201

0955 Series Normally Open Valve
MODEL
0955105
0955305
0955405
0955505
0955605
0955705
0955805
PORT SIZE
G1/4''
G1/2''
G3/4''
G1''
G 1 1/4''
G1 1/2''
G2''
BORE(mm)
8
12
20
25
32
40
50
KV VALUE
1.15
1.70
5.1
5.35
20.0
25.0
43.0
WEIGHT(kg)
0.70
0.70
1.20
1.30
2.70
2.70
3.50
PRESSURE
0.07~1.6MPa
0.1~1.6MPa
MEDIUM
AIR,WATER,OIL,STEAM
TYPE
NORMAL OPEN
BODY MATERIAL
BRASS
SEAL MATERIAL
NBR/VITON(SILICON)
TEMPERATURE
NBR:-5~80C   VITON:-20~150C
COIL
HERION TYPE 0201

2 Way 2 Position Normal Close 0927 Series Brass Body Solenoid Valve
0927 Normally Closed Diaphragm 2 Way Solenoid Valve Brass
0955 Normally Open Diaphragm Valve 12VAC
1/2'' 12mm Flow Bore NC Way 2/2 Way Model 0927200
