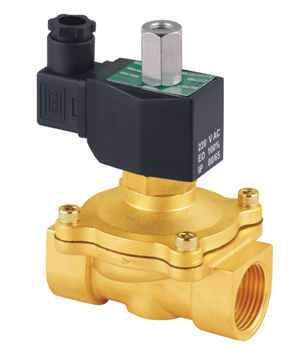

Normally Open Solenoid Valves

Price: 1.0~50.0 USD
Payment Terms: T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 2W
Production Capacity: 5000-10000PCS/MONTH
Delivery Date: 1~20 Working Days
Standard or Nonstandard: Standard
Structure: Control
Temperature of Media: Medium Temperature
Brand Name: TXPC
2WT: Normally Open
Working Pressure: 0-16MPa
Function: 2/2 Way
Brand Type: TXPC
Means of Transport: Air
Packing: Standard Export Package Or ...
Power: Pneumatic
Pressure: Medium Pressure
Material: Brass or Stainless Steel
Media: Water
2W: Normally Closed
Type: Direct Act and Diaphragm
Working Temperature: -20-185'C
Body: Compact Valve Body
Port Size: 1/8''-2''

2W Water Solenoid Valves
High Quality Brass
Direct Acting Valves
Normally Open Water Valve
IP65
IP68 Waterproof Valves

These series are direct action type two position two way solenoid valve. It adopts the diaphragm seal structure, with zero differential pressure staring function. Handsome shape, and large flow. It is a switch element most normally used in modern industrial pipeline

Specs and Descriptions
2W350-35
2W400-40
2W500-50
Port Size
G1-1/4''
G1-1/2''
G2''
Flow Bore Size
35mm
40mm
50mm
CV Value
24
29
48
Type
Normal Open
Way Position
2/2 Way
Material of Body
2W:Brass(Option:2S:Stainless Steel)
Motion Pattern
Direct Drive
Working Temperature
-5~+80'C(180'C)
Working Pressure
Water/Oil:0~0.5Mpa  Air/Gas:0~0.7Mpa
Material of Seal
NBR,VITON,EPDM
Voltage
AC110V,AC220V,DC12V,DC24V
Voltage Range
±10%
Liquid
Water Oil Gas Air
Coil
Conventional(Waterproof)

Specs and Descriptions
2W160-10
2W160-15
2W200-20
2W250-25
Port Size
G3/8''
G1/2''
G3/4''
G1''
CV Value
4.8
4.8
7.6
12
Type
Normal Open
Way Position
2/2 Way
Material of Body
2W:Brass(Option:2S:Stainless Steel)
Motion Pattern
Direct Drive
Working Temperature
-5~+80'C(180'C)
Working Pressure
Water/Oil:0~0.5Mpa  Air/Gas:0~0.7Mpa
Material of Seal
NBR,VITON,EPDM
Voltage
AC110V,AC220V,DC12V,DC24V
Voltage Range
±10%
Liquid
Water Oil Gas Air
Coil
Wire Lead,DIN


Description:
· Two position, two way, normal close switch, magnetic solenoid water valve.
· Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
· Used to control automatically the liquid and gas in the pipeline.

1.  2W Normally Closed Water Solenoid Valve
2.  2 Position Water Fluid Control Solenoid Valve Brass
3.  2-Way Water Process Valve Air Gas Water Solenoids
4.  UD Series Wire Lead Brass Solenoid Water Valve DC24V OIL,GAS N/C
5.  1/4'' 2/2 Way Solenoid Valve 12V
6.  AC220V Irrigation Solenoid Valve Water 1/8''
7.  New Electric Solenoid Valve Water Air N/C 110V AC
8.  3/4" Electric Solenoid Valve 24-V VITON SEAL N.C. (Air, Gas,Fuel...)
9.  12V DC 1/2" Solenoid Valve for Train Water Air Pipeline
10.  Brass 1" Electric Air Valve Diesel Gas Water Horn Suspension
11.  2'' Fire Water Valve Brass Solenoid Pipeline Valve
12.  2/2 Position Diaphragm Valve NPT Thread Ports American Standard Valves
13.  Direct Acting Solenoid Valve Water Systerm Chinese Factory
14.  High Quality EPDM Pneumatic Solenoid Valve 2 Way Brass N.C.
15.  Sanitary Diaphragm Solenoid Valve Drink Water Silicon Gel
16.  Normally Open Water Solenoid Valve
17.  2 Way Brass Water Air Gas IP65 Normally Open Solenoid Valve
18.  240VAC Water Solenoid Valves EN Valves
19.  VITON High Temperature Acid Solenoid Valves
20.  EPDM Solenoid Valve Water Air
21.  Food Class Silicon Gel Sanitary Solenoid Valves Drink Water
22.  Medical electromagnetic valve
23.  Waterproof Solenoid Valve IP68 Underwater Valves
