Fluid Control Valve from China manufacturer - Fenghua Tianxin Solenoid Valve Co., Ltd.

Price:	1.0~50.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2W

Production Capacity: 5000-10000PCS/MONTH

Delivery Date: 1~20 Working Days

Type: Normally Closed

Means of Transport: Ocean

Packing: Standard Export Package Or ...

Brand Name: TXPC

Way Type: 2/2 Way

1-) High Quality
2-) ISO/OEM/ODM/CE
3-) Label Service
4-) 20 Year Experience
5-) Custom Design Supported

Please note that we are selling factory direct products. All our products are 100% brand new in manufacturer's packaging.

Code Option

Thread Option: G and NPT

Standard Voltage Option: DC12V,DC24V,AC110V,AC220V

Material Option: Brass and Stainless Steel

Oil Seal Option:NBR,EPDM,VITON

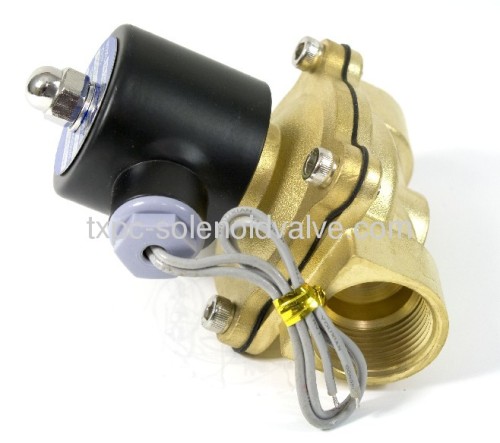

2 Position 2 Way Water Fluid Control Solenoid Valve Brass

Specs and Descriptions
2W160-10
2W160-15
2W200-20
2W250-25
Port Size
G3/8''
G1/2''
G3/4''
G1''
CV Value
4.8
4.8
7.6
12
Type
Normal Closed
Way Position
2/2 Way
Material of Body
2W:Brass(Option:2S:Stainless Steel)
Motion Pattern
Direct Drive
Working Temperature
-5~+80'C(180'C)
Working Pressure
Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa
Material of Seal
NBR,VITON,EPDM
Voltage
AC110V,AC220V,DC12V,DC24V
Voltage Range
±10%
Liquid
Water Oil Gas Air
Coil
Wire Lead,DIN

Specs and Descriptions	2W350-35	2W400-40	2W500-50
Port Size	G1-1/4''	G1-1/2''	G2''
Flow Bore Size	35mm	40mm	50mm
CV Value	24	29	48
Type	Normal Closed
Way Position	2/2 Way
Material of Body	2W:Brass(Option:2S:Stainless Steel)
Motion Pattern	Direct Drive
Working Temperature	-5~+80'C(180'C)
Working Pressure	Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa
Material of Seal	NBR,VITON,EPDM
Voltage	AC110V,AC220V,DC12V,DC24V
Voltage Range	±10%
Liquid	Water Oil Gas Air
Coil	Conventional(Waterproof)

Description:

· Two position, two way, normal close switch, magnetic solenoid water valve.

· Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.

· Used to control automatically the liquid and gas in the pipeline.
