150PSI Air Pneumatic Filter

Price: 1.0~50.0 USD
Payment Terms: T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AF1000-5000
Production Capacity: 5000-10000PCS/MONTH
Delivery Date: 1~20 Working Days
Usage: Filter Paper
Certification: CE
Filter Element: 40u
Material: Aluminum Die-Casting Formin...
Working Temperature: -5-65'C
Body: Compact Valve Body
Means of Transport: Ocean
Packing: Standard Export Package Or ...
Type: Professional Specialty Pape...
Brand Name: TXPC
Operating Fluid: Air
Port Size: 1/8'-1/2''
Working Pressure: 0-10MPa
Pressure Resistance: 1.5MPa
Container Cup: PE

AC FRL(AC1000~AC5000)
AC FR+L (AC1010A~AC5010A)
AW Filter Regulator (AW1000~5000)
AF Filter (AF1000~AF5000)
AR Regulator (AR1000~AR5000)

SMC AF Air Filter

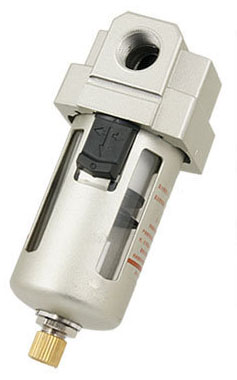

SMC Type 150PSI Air Pneumatic Filter Meter Combo Unit
· The Air Source Treatment Pneumatic Filter adjustable pressure range is 0.05-1.0Mpa.
· Adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically.

Description:
· Air Treatment Units are auxiliary components in pneumatic automation system, they are mainly used for treating air source from air compressor, making the air clean dry with stable pressure and lubricated.
· Filter and regulator together as one part, make it has compact dimension. Filter adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically. Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction.
· Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components.
· Pull the relief valve and rotate it , then the compressed air pressure can be adjusted to the expired pressure gradd, and can make the pressure pulse balanced, press down the knob to lock it.
· Pneumatic Filter Air Source Treatment. to reduce pressure of air which come from air pressure machine, to provide pressue gauge clean and good air.
· Combination air filte come with a pressure gauge, easy to use, combination can provide more quickly clean air than simple one.

A Series Air Units are similar to SMC A series Air Preparation units and are our most popular style air units with higher flow rates,simple assembly and maintenance reduces down time.
A series Air Treatment Units are available for 8 sizes options from M5 to 1 to ensure optimum performance,offering energy savings,A series Air Treatment Units are a good replacement for SMC Air Units,Air Filter+Air Lubricator+Air Regulator.

AC FRL(AC1000~AC5000)
AC FR+L (AC1010A~AC5010A)
AW Filter Regulator (AW1000~5000)
AF Filter (AF1000~AF5000)
AR Regulator (AR1000~AR5000)
AL Lubricator (AL1000~AL5000)
* Clean looking, modular design
* Energy saving with high flow rate
* Compact spacer with bracket reduces total assembly space
* Optional pressure gauge,body size
* Rc(PT), G(PF) or NPT threads, port sizes: M5, 1/8"~1"
* Optional drain model
Ensured pressure Resistance
1.5MPa(15kgf/cm²)
  Highest Working Pressure
1.0MPa(10kgf/cm²)
  Ambient and Fluid Temperature
5-60℃
  * Filter Precision
25 µm
  Container Material
Polycarbonate
  Protective Cover
AF1000-2000(Not Available)
Model
Specifications
Accessories
Drain Function
Auto Drain Model
* Rated Flow
(L/min)
Port Size
(G)
Bowl Capacity
CM³)
Weight
(kg)
Bracket
AF1000-M5
110
M5
4
0.07
-
Manual Drain
AF2000-01
750
1/8
15
0.19
B240
AF2000-01D
AF2000-02
1/4
AF2000-02D
AF3000-02
1500
1/4
20
0.29
B340
a. Air Shut off Drain
b. Manual Drain
AF3000-02D
AF3000-03
3/8
AF3000-03D
AF4000-03
4000
3/8
45
0.55
B440
AF4000-03D
AF4000-04
1/2
AF4000-04D
AF4000-06
6000
3/4
45
0.58
B540
AF4000-06D
AF5000-06
7000
3/4
130
1.08
B640
AF5000-06D
AF5000-10
1
AF5000-10D
