DC231-Y 3 way valve from China manufacturer - Fenghua Tianxin Solenoid Valve Co., Ltd.

Price:	1.0~50.0 USD
Payment Terms:	T/T,L/C,D/A,D/P,WU;Escrow
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: DC231-Y

Production Capacity: 5000-10000PCS/MONTH

Delivery Date: 1~20 Working Days

Standard or Nonstandard: Standard

Structure: Control

Temperature of Media: Medium Temperature

Brand Name: TXPC

Way Type: 3 Way

Working Pressure: 0-10MPa

Function: 2/2 Way

Means of Transport: Ocean

Packing: Standard Export Package Or ...

Power: Solenoid

Pressure: Medium Pressure

Material: Brass or Stainless Steel

Media: Water

Type: Normally Closed

Port Size: 1/4'' or 3/8''

Working Temperature: -20-185'C

Body: Compact Valve Body

Brass direct acting solenoid valve,suitable for neutral glasses and liquid,including compressedair,nature gases,water,sydraulic oil and technical vacu

Description:

· Two position and three way solenoid air valve, NC switch

· Great metal construction provide a long time use.

· 1/4'' and 3/8''

Brass direct acting solenoid valve,suitable for neutral glasses and liquid,including compressed
air,nature gases,water,sydraulic oil and technical vacuum.Compact design,high quality VITON seal.

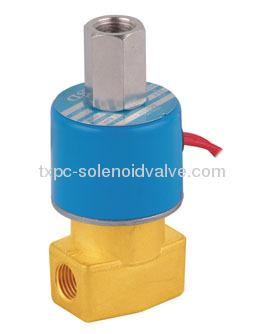

DC231-Y Direct Action Pneumatic 3 Way Solenoid Valve AC 220V
3/8'' KSD Series Direct Acting Air Compressor Solenoid Valve 3 Way

Product Name	Solenoid Valve
Model	DC231-Y
Action	Direct Action
Type	Two-position, Three-way
Fluid Media	Air
Switch Type	NC
Bottom Thread Dia	4mm/ 5/32"
Joint Pipe Bore	1/4''	3/8''
Pressure	0~7kgf/cm2
Operating Temperature	-5 ~ 85°C
Voltage	Standard
Total Size	4 x 9.5cm/ 1.6'' x 3.7''(D*H)
Cable Length	20cm/ 7.8''
External Material	Metal
Color	Brass Tone, Blue
Net Weight	420g
Package Content	1 x Solenoid Valve

MODEL	FB2E-V-08	FB2E-V-10	DC231Y-08	DC231Y-10
	KSD22-08	KSD22-10	KSD23-08	KSD23-10
WAY TYPE	2/2		3/2
PORT SIZE	G1/4''	G3/8''	G1/4''	G3/8''
PORE(mm)	4.0		Up:2.3 Bottom:1.6
PRESSURE	AC:0~9BAR DC:0~6BAR		0~7BAR
POWER	100W
BODY MATERIAL	BRASS
SEAL MATERIAL	VITON
MEDIUM	AIR,WATER,NEUTRAL GAS
